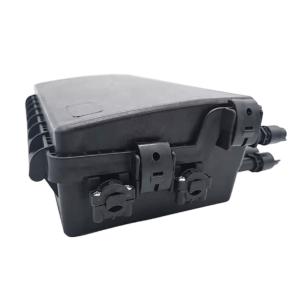

Name | 2in 2out 16Port 48Core Terminal Box Splice Closure With Waterproof
Sealing |
Use
| FTTH FTTX FTTB |
Outlet ports
| 16Port, 2 IN-2OUT |
Sealing Method
| Mechanical and Heat-shrinkable Seals |
IP Degree
| IP68 |
Material
| Dome and base : Modified P.P +GF Tray: ABS |
Suitable Adapter
| SC/LC/FC/ST |
Fiber Type
| SM/MM (OM1, OM2, OM3, OM4) |
Working Temperature
| -40℃ - +70℃ |
Atmospheric Pressure
| 70-150Kpa |
Features
► Excessive fibers can be stored in storage baskets. Easy in fiber
management.
► Fully mechanical sealing. Easy installation and reentry. No other
sealing adhesive tape is needed.
► Base and dome sealed with clamp and O-ring system. Cable entry
ports sealed with rubber.
► The splice trays are hinged for access to any splice tray, without
disturbing other trays.
► The inner parts and fixing parts are made of stainless steel.
► With a earthing device protect it from damage by lightning.
► Compatible with most cable types(single fiber or ribbon), and cable
constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment
(aerial, buried, handhole, manhole)and in many applications (tap-off, expressed, branch, and repair).
Application
► It can be installed in aerial locations, ducted applications,
direct buried, manholes.
► Small volume but large capacity.
Technical Parameter
► Working Temperature: -40 degrees centigrade~+70 degrees centigrade
► Atmospheric Pressure: 70~150Kpa
► Axial Tension: >2000N/1min
► Stretching Resistance: 2500N/10 square centimetre(1min)
► Insulation resistance: >2*104MΩ
► Voltage Strength: 15KV/1min, no arcover or breakdown
► Pressure in the water: 50m/72hours
► Splice tray with optical taking-in radius: 30mm. Low optical loss.
Configuration
Material
| Dome and Base: Modified P.P+GF Tray: ABS |
Dimension (mm) | 359*277*120 |
Weight(kg)
| 1.8 |
Color
| Black |
Sealing Method
| Mechanical and Heat-shrinkable Seals |
Mount Type
| Aerial/Buried/Wall-mount/Pole-mount |
Entry Port Diameter | 2 inlets and 2 outlets <25mm
16round ports for drop cable |
Tray
| 2 |
Tray Capacity
| 24 |
Total Capacity (Fibers)
| 48 |
